Wood Fired Swimming Pool Heater
Wood Fired Swimming Pool Heater
The SUNLINE 85 kW wood-fired pool heater lets you swim year-round with fast, cost-effective, and eco-friendly heating. It uses affordable bio-energy, producing lower emissions than fossil fuels and helping manage bio-waste—no electricity required.
It includes a large firebox (holds up to 80 kg wood logs), safety valves, temperature gauge, and high-efficiency insulation. Additional features: cast aluminum door, ash tray, cast iron grate, and 2-meter stainless steel chimney.

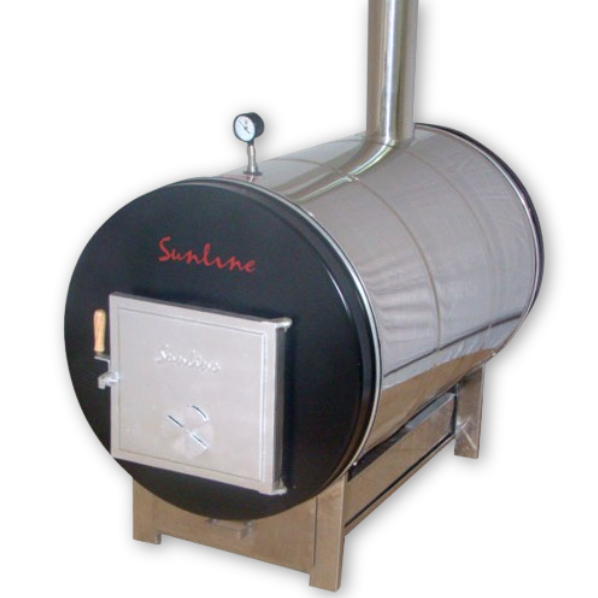

"SUNLINE" Wood Fired Swimming Pool Heater – 85 kW
If you want to swim 365 days in your swimming pool then SUNLINE wood fired swimming pool heater - 85 kw is a right choice.
Normally, swimming pool is utilized 4 to 6 months during the year due to absence of appropriate water heating system which is faster in heating, cost-effective and easy to install. SUNLINE wood fired swimming pool heater - 85 kw delivers more heat compare to electric and gas operated pool heaters. So you can heat the pool in less time duration with low cost fuel.
- Bio-energy is affordable heating fuel
- A low-carbon emission option (less CO2 emissions than fossil fuels)
- Energy from waste
- Solve waste disposal problem of bio waste
- Bio fuels are biodegradable
- 100 % safe (Non electrical)
- Protect against price rise of electricity, oil & gas.
Key Features
- Stainless steel (304 grade) inner & outer construction
- Internal jacket and in-built stainless steel heat exchanger both provisions provide fast heat transfer in short time duration
- Large Firebox: You can put 3 feet 6 inch long wood log in a fire box. You can load 75 to 80 kg. wood log at a time.
- Temperature gauge and safety valve ( over temperature and pressure release valve)
- Hydrostatic pressure tested at 2 Kg/cm²
- Energy-efficient insulation (1" thick CeraWool, 64 kg/m²).This insulation protects heater from atmospheric coldness and prevent heat inside . Insulation is covered by stainless steel casing and aluminum dish-ends.
- Cast aluminum door with inspection window and wood handle
- Cast iron grate in 3 pieces.
- Ash Tray :Large size -1020 mm ( 40 inch) length X 440 mm (17.6 inch ) width X140 mm ( 5.6 Inch) depth.
- Chimney ( smoke ) pipe :Stainless steel -2 meters height in 2 piece.
Technical Specifications
| Specification | Details |
|---|---|
| Overall Height | 1080 mm (42 ½ Inch) |
| Overall Width | 850 mm (33 ½ Inch) |
| Overall Depth / Length | 1475 mm (58 Inch) |
| Fire Box Length | 1168 mm (46 Inch) |
| Fire Box Diameter | 680 mm (26 ¾ Inch) |
| Heat Transfer Area | 44 Square Feet |
| Fire Chamber Volume | 12 Cubic Feet |
| Fuel Type | Wood Logs |
| Nominal Heat Output | 85 kW |
| Inlet & Outlet Connection | 1 ½ Inch BSP Thread |
| Drain Point | 1 Inch BSP Thread |
| Smoke Outlet | 6 Inch — 152 mm OD |
| Heater Weight (with Chimney) | Approx. 188 Kg |
